Linearni aktuator DC 20 V

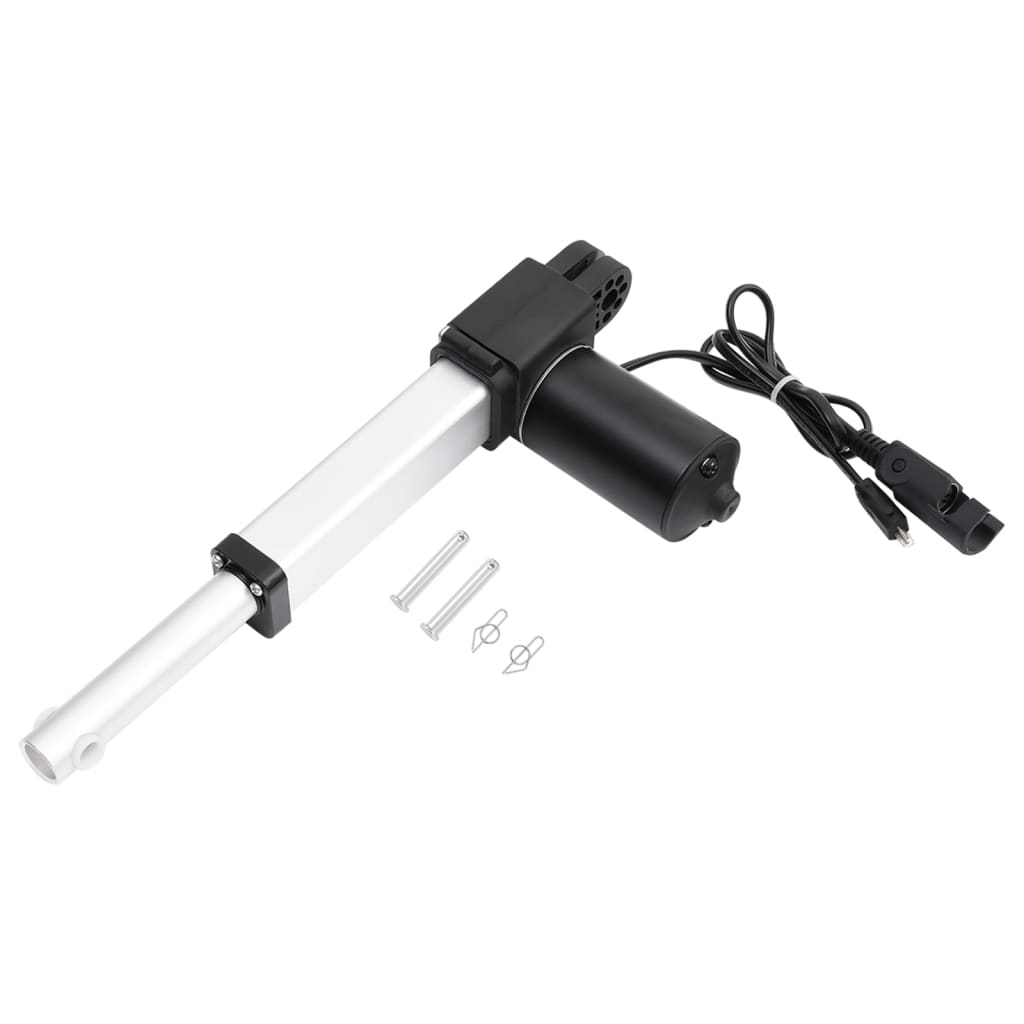

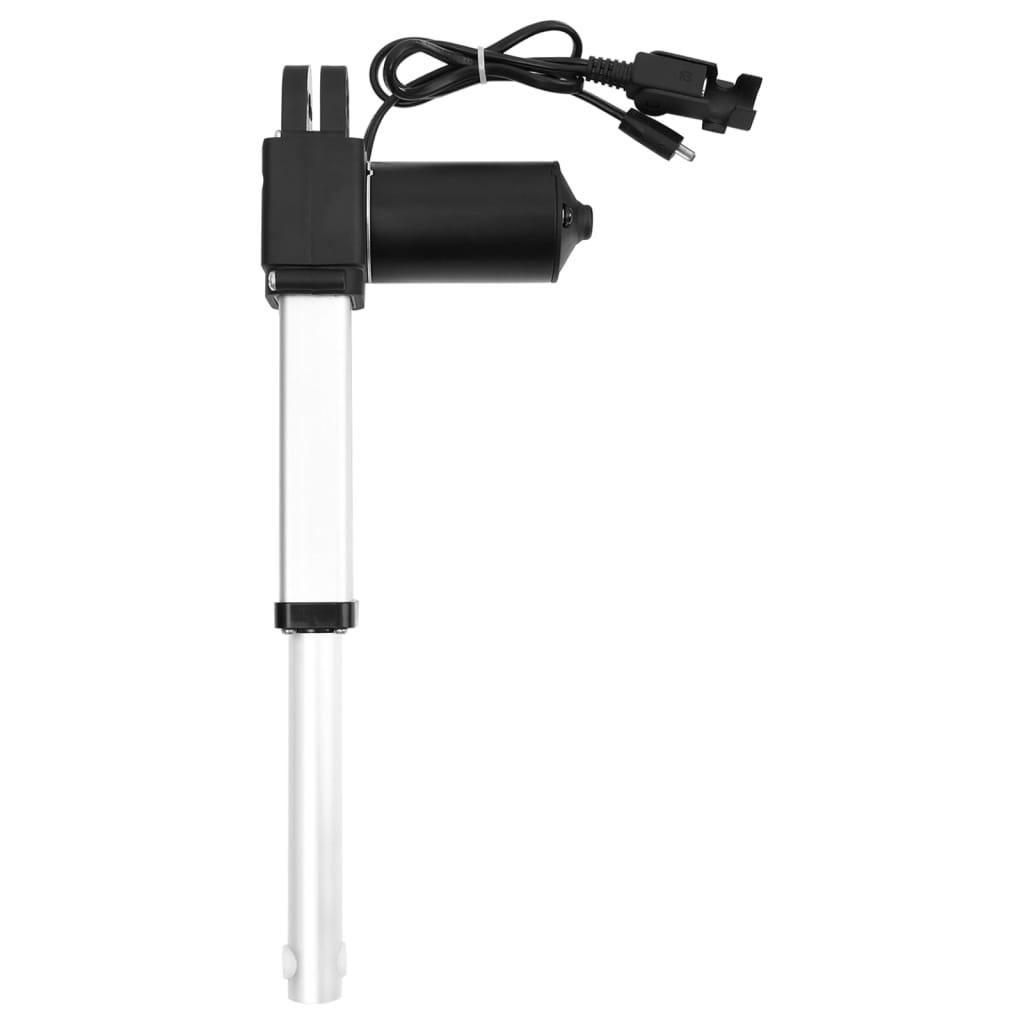

This DC 28V linear actuator is ideal for the purpose of moving objects in a straight line (up and down, or left and right).

Durable use: This electric linear actuator adopts aluminium alloy case, which is thick and sturdy.
Retract & Extend function: The actuator supports the retraction and extension movements of the electric device; the metal gears make it move smoothly and you can stop wherever you want.
Powerful motor: This micro linear actuator has a maximum thrust of 1000 N for lifting or down. It moves at a speed of 5 mm/s while working quietly.
Wide applications: The small linear actuator can be used for home furniture such as massage chairs, electric sofas, lift tables, etc.

Warning:
For indoor use only

Specifications:

Colour: Black and silver

Material: Aluminium alloy

Length: 15 cm

Minimum installation distance: 25.5 cm

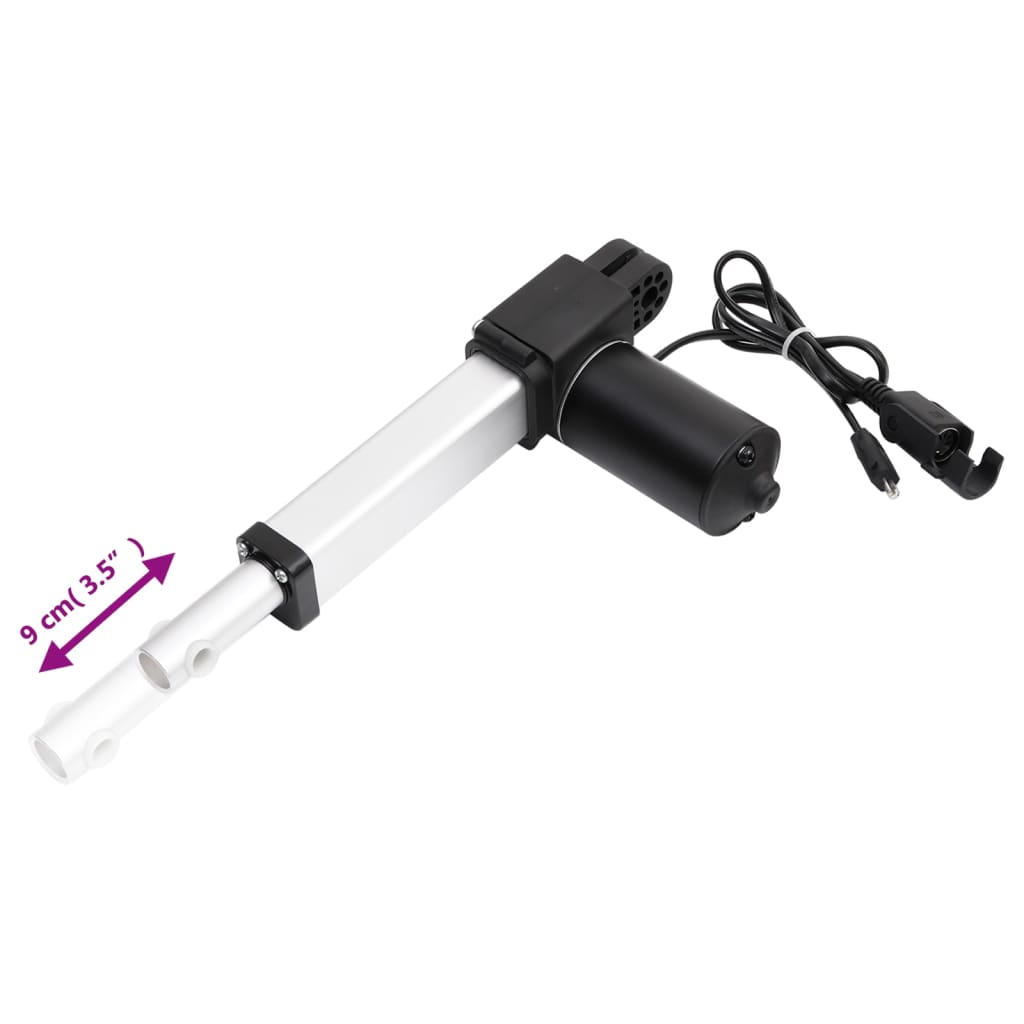

Stroke: 90 mm

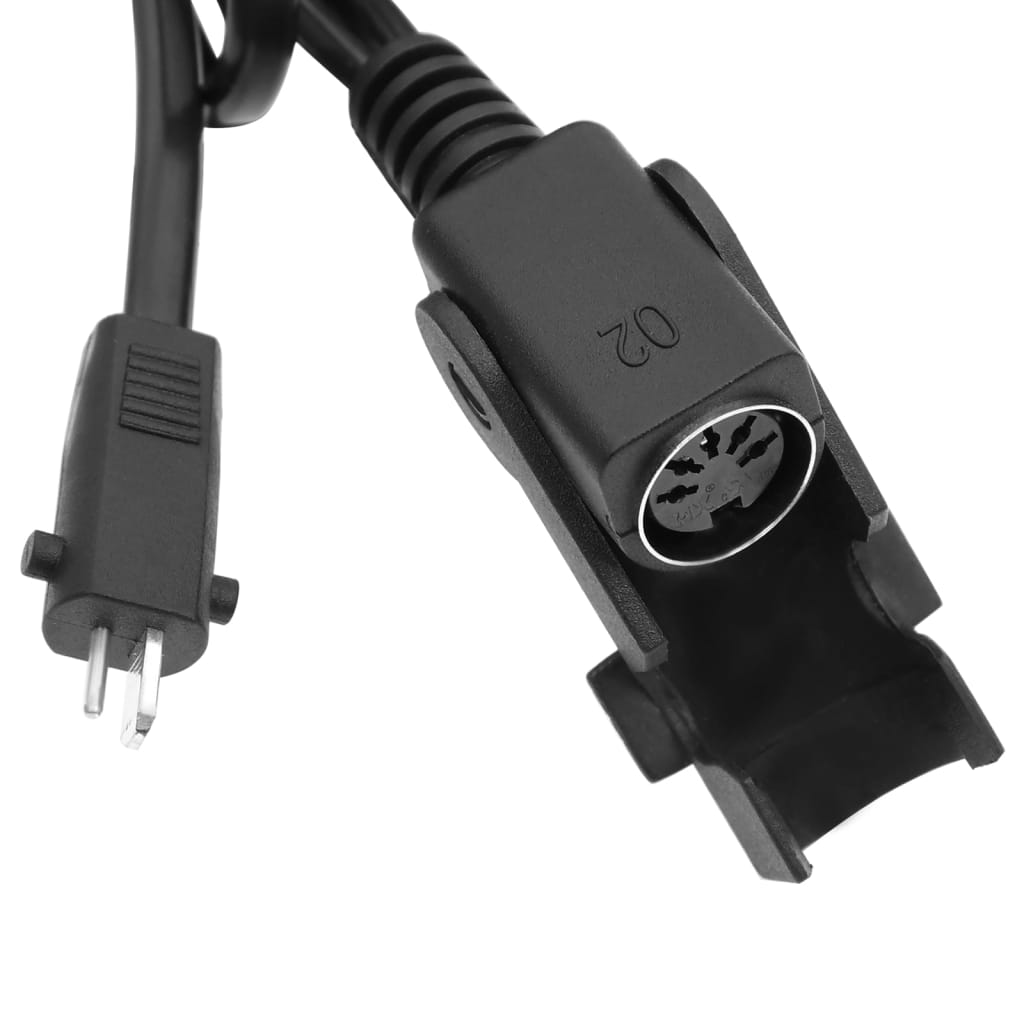

Motor cable length: 55 cm

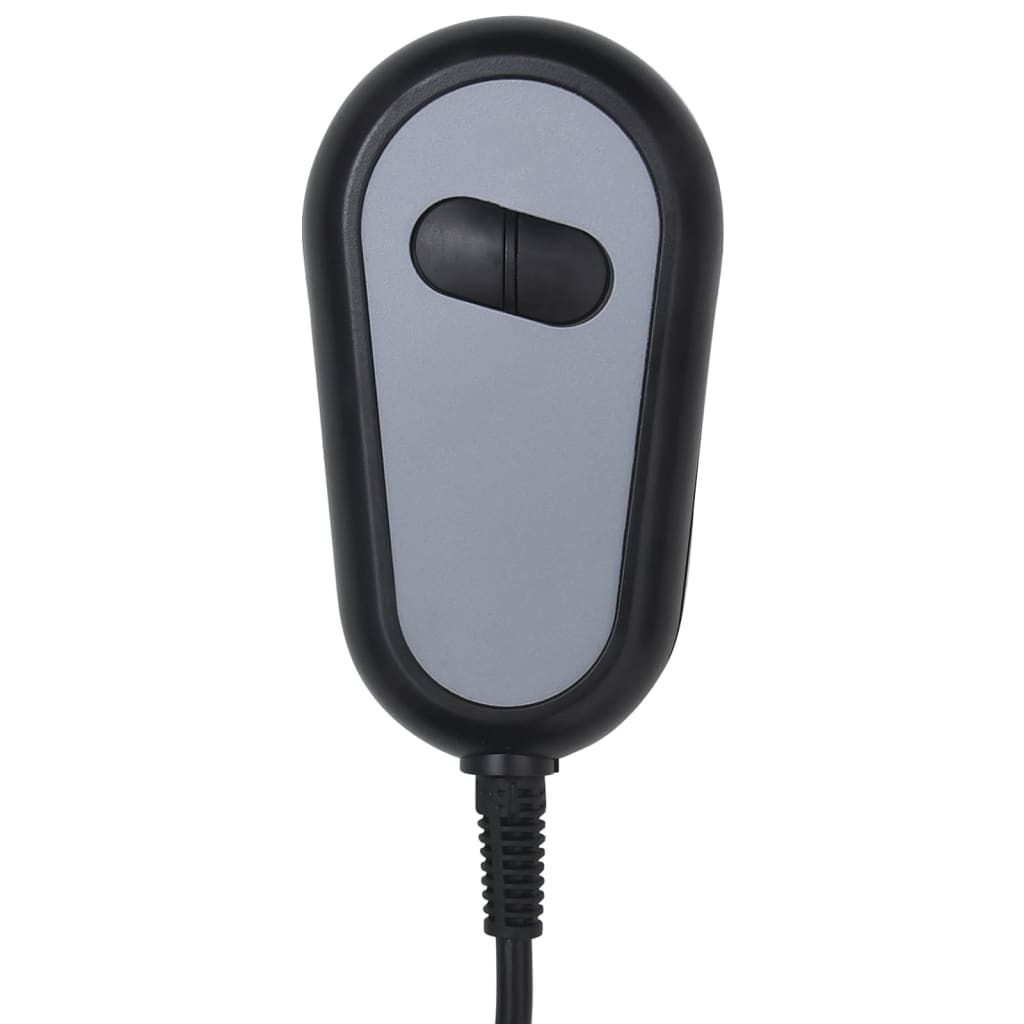

Remote control cable length: 1.5 m

Adaptor cable length: 2 m

Input: 100 – 240 V~, 50 – 60 Hz

Output: DC 28 V, 1.5 A

Speed: 5 mm/s

Maximum thrust: 1000 N
(WSGL: 3328)
